Cat6 Outdoor Ethernet Cable｜Unshielded

Outdoor Rated Ethernet Cable

• Not rated for direct burial.
• The OSP jacket is UV resistant designed to withstand sunlight, snow, and ice.
• Perfect for above ground applications

Optimum Performance

• Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
• Bandwidth tested up to 550 MHz.
• Unshielded twisted pairs - U/UTP
• Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

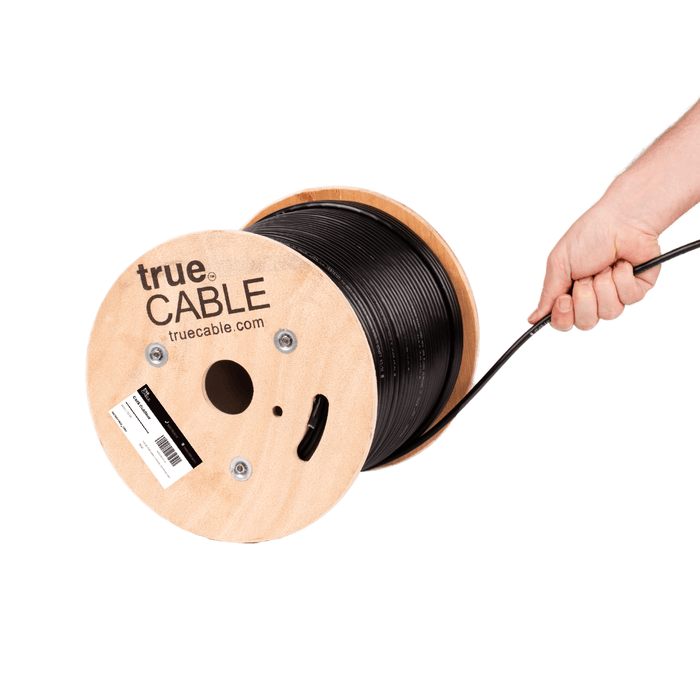

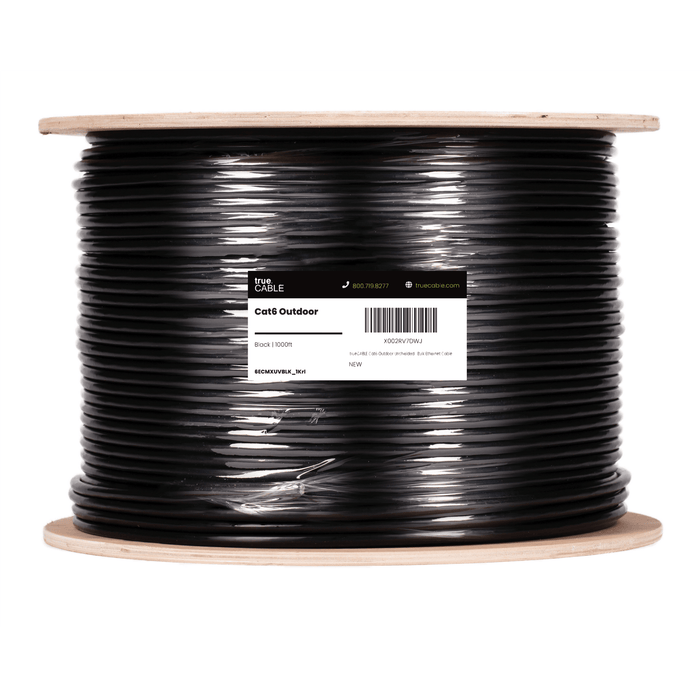

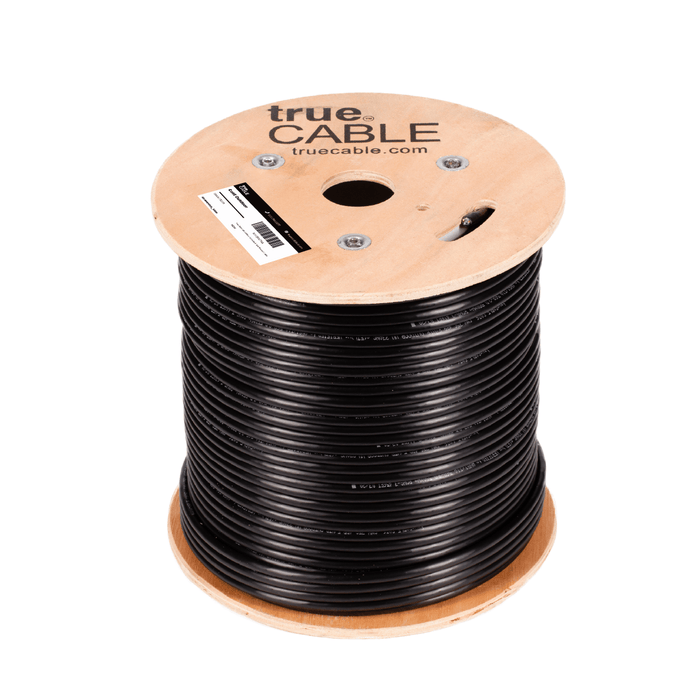

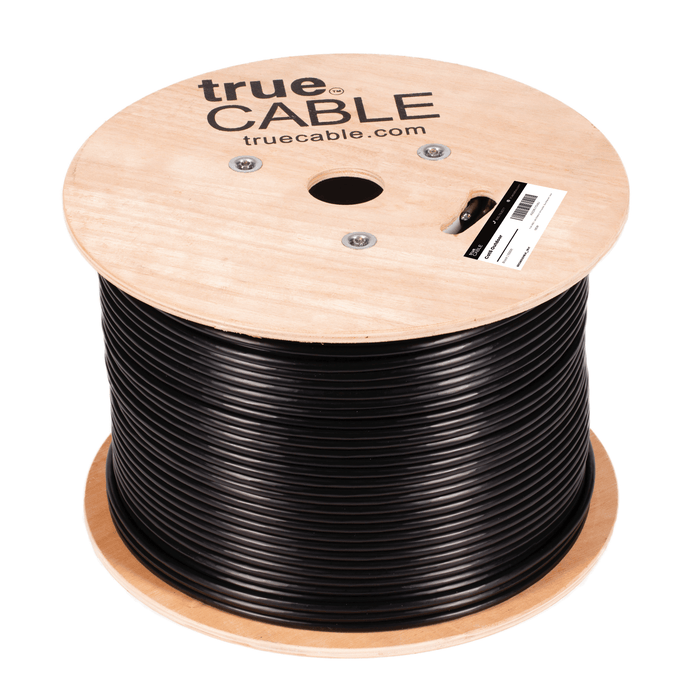

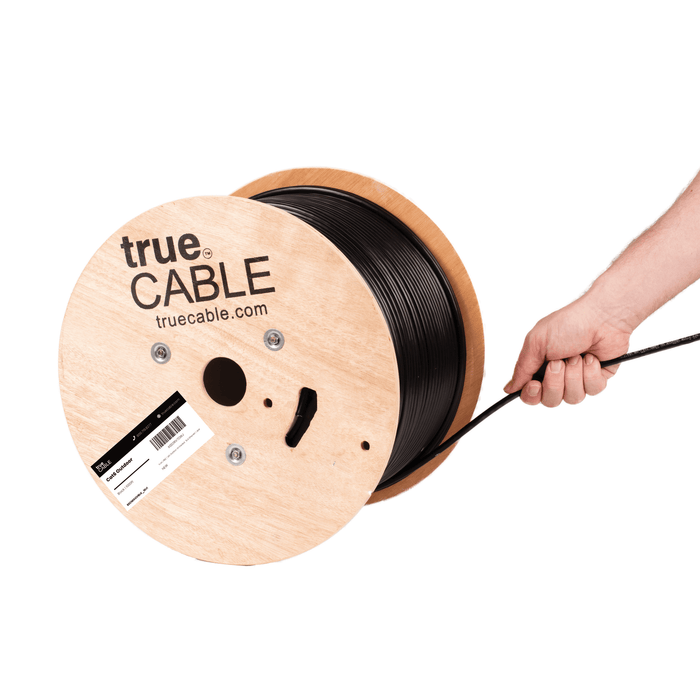

• Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.

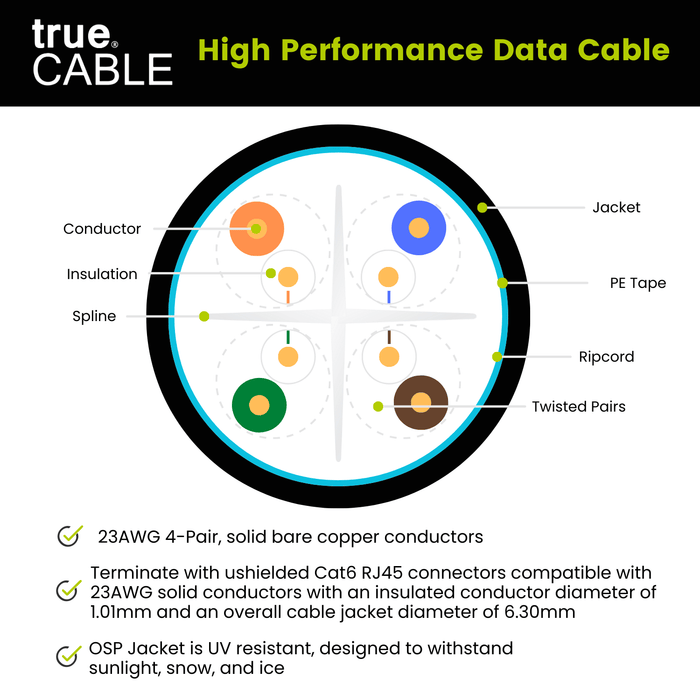

• Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

Compatibility Counts

• Terminate with Cat6/6A Unshielded Pass Through RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.01mm and an overall cable jacket diameter of 6.30mm.

Pure Solid Bare Copper Conductors

• Complies with UL, ANSI/TIA, and U.S. product safety standards.
• Bare copper is superior conductor material for data transmission and PoE use.
• The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ Field Tested, Customer Approved

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and comply with ANSI/TIA 568.2-E standards, RoHS-3 compliant. Backed by our FOREVER WARRANTY.
